Atomiser Short — Two RTAs Gone Rogue

Alright herd, I need some help here.

I’ve got two RTAs pulling the same stunt — my Hellvape Hellbeast and Dead Rabbit V3. Both were running just fine, then out of nowhere: “Atomiser Short.”

So, I did the usual dance — stripped them down, cleaned everything, dropped in fresh coils and cotton. Popped them back on the mod… and now I’m getting weird resistance readings. Coils that should be around 0.15 Ω are suddenly showing 0.5 Ω or higher.

Hit the fire button — boom, instant atomiser short again.

Here’s the kicker: my other RTAs are working perfectly on the same mod, so I know it’s not the device.

What am I missing here? Loose post screw? Deck gremlin? Hidden short somewhere I’m not seeing?

Any ideas before I start headbutting these tanks into submission?

2 Likes

Are your 510 pins loose? I’ve had wandering ohm readings in the past, remedied by snugging said pins with a screwdriver, OG.

1 Like

Thanks for the suggestion. I’ve gone full demolition mode on both — fully apart, cleaned, even gave them the ultrasonic spa treatment. Every screw and contact is snug as a goat in a mountain nook.

The weird thing is my other RTAs behave perfectly on the same mod, so it’s gotta be something specific to these two. At this point I’m stumped — any ideas beyond the obvious “tighten everything”?

2 Likes

Well, for shits and giggles, have you tried the offending tanks on your other Mods…

2 Likes

Are you using some kind of different, or oversized coil that’s touching the deck anywhere? Or, a different batch of coils themselves?

1 Like

Yeah, I’ve tried both on other mods — same problem.

As for the coils, nothing fancy or oversized. They’re all standard builds, same wire, same batch, nothing touching the deck anywhere it shouldn’t. That’s why this is driving me nuts… two different RTAs, same behavior, while my other tanks work fine.

2 Likes

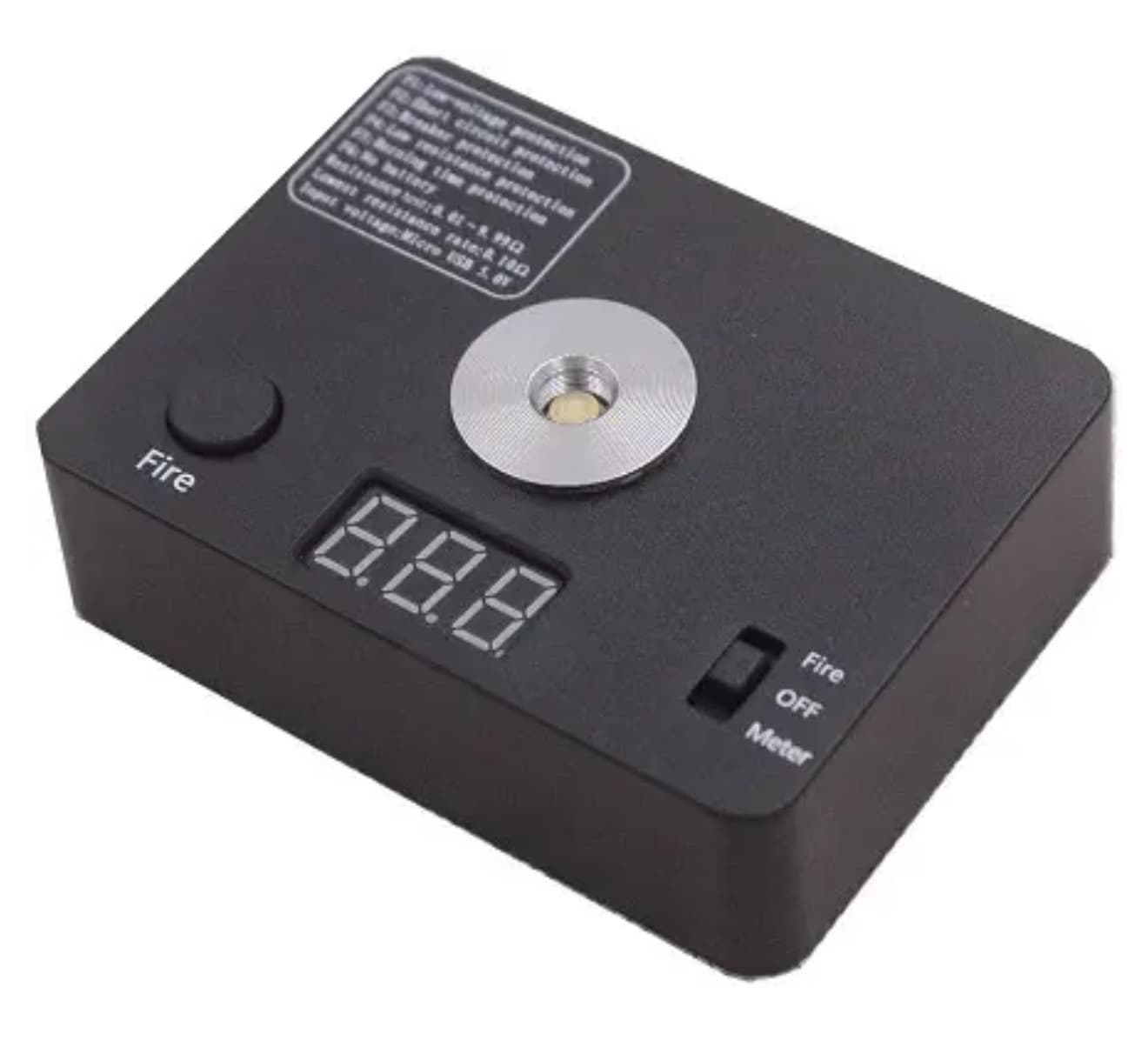

Got one of these, OG?

Just to eliminate the Mod completely.

2 Likes

Yup. Got the CoilMaster one. Same issue.

2 Likes

Funny thing, both are HellVape tanks. Don’t know if that is part of the problem.

2 Likes

Hmm…this is quite the dilemma

1 Like

My brain is broken. I can not figure it out.

2 Likes

IMO, there’s something in common with both of these tanks. So, you were vaping away, and then, the next time you pressed the button…“short”? You hadn’t made any changes just beforehand?
Pull the batteries and try a different set? I’m no electrical pro, OG, but I’d try that, too.

1 Like

I just bumped up the wattage a bit on the Hellbeast. From 75W to 105W. The DR just decided to go BOOM all by itself, no changes there. Both at the same time too, driving home from work, stuck in traffic and needing a nic fix. Needless to say, not a great ride home.

2 Likes

I’m outta ideas, @SessionDrummer , @woftam , or @anon24975801 are all smart guys.

1 Like

Thanks for trying. Usually, I can figure stuff like this out myself pretty quickly, but this one is going way over my head.

2 Likes

Well you’ve already done a lot of the eliminating already, which is part of the troubleshooting process. Rule out the mod, tear down, inspect, etc.

It sounds like they both ARE shorted. You can rule out the insulators, by completely pulling the coils off, and making sure it is NOT shorted then, and should show no atty.

Double check ALL PEEK insulators, as they may be worn/cracked/gone causing an internal short before the coil even comes into play. Obviously check for MICRO pieces of wire, maybe from trimming coils that are very small, bridging the +/-.

I’d be curious to pull the coils, and read them with a Fluke, just to see what’s what, specifically on the coils. It’s either two things after you’ve ruled out the mod, is the coils, or tank.

1 Like

Now that you mention it. When I take the coils out, the atty reads 0.9ohms. The sad part is, the Hellbeast is brand new.

I did check my coils on a multimeter, get a reading of aprox 0.15 ohms

2 Likes

Too late to send it back?

1 Like

That might be my next move. Just don’t want to deal with the pain of waiting for a new one.

2 Likes

Ehh, just reach out to @PaulyWalnuts , he’ll distract you while you’re waiting for the new one! :laughing:

2 Likes
