Innokin fourth generation tech full size mod released next week!

The Sensis saw a Pod Mod from Innokin with innovative new technology which kept flavour produced fresh which in turn increased coil longevity!

Now the technology is about to be let off the leash!!!

4 Likes

Innokin Coolfire Z80 Kit Preview – The Coolfire Is Back!

The Innokin Coolfire Z80 Kit is the newest kit to wear the “Coolfire” badge…

coolfire z80 banner

This popular range have included the Coolfire Z80, Coolfire Ultra and the Coolfire Mini.

What Is New On The Innokin Coolfire Z80 Kit?

Sadly this is not yet showing on the official Innokin website – I have had to get the info from a vendor website.

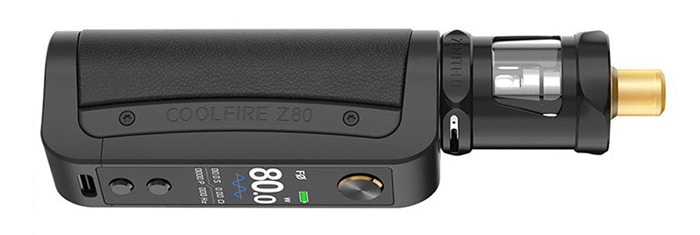

coolfire z80 black

The info does show the full kit which includes the new Zenith 2 tank – but there is not much detail about this tank yet so I will cover this in another preview when more info shows up.

Mainly therefore I will be dealing with the Coolfire Z80 mod and what this has to offer.

coolfire z80 colours

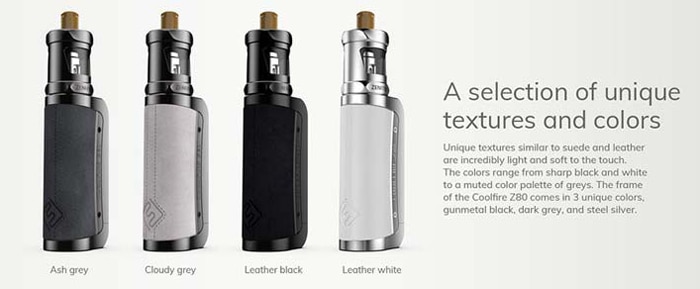

As you can see the styling is very “Coolfire” like (apart from the dodgy looking Coolfire 2 obviously) and has lovely smooth curves with Leather or Suede textured grip areas. The marketing images do say the textures are “similar to Suede and Leather” so this might be an imitation material – but again this is not specified.

Surrounding the grip areas is the main Zinc-Alloy frame which is either GunMetal, Dark Grey or Silver depending on which colour version you choose.

coolfire z80 battery

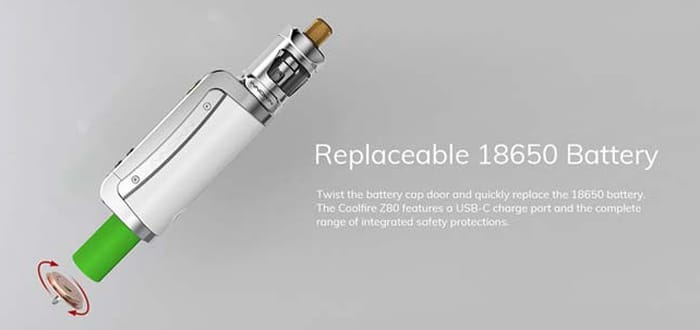

This requires a single 18650 battery for power which is not included in the kit and you get a USB Type C port which can charge at up to a 1.7A charge rate.

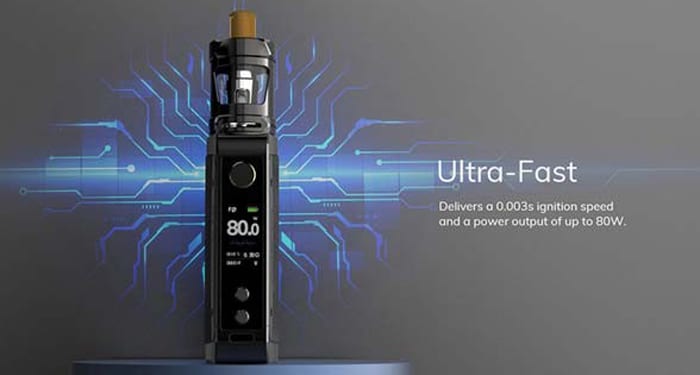

You have a Variable wattage output of 6-80W and the image of the specifications also suggests you can adjust the voltage too?

coolfire z80 output

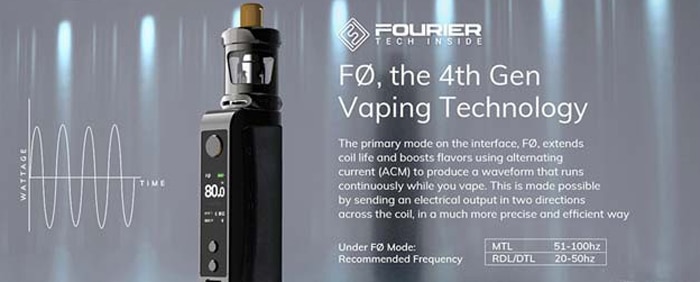

In addition to these user modes you also get the F0 Fourth Generation Technology mode (found on the recent Innokin Sensis) which allows you to change the frequency of the alternating current going to the coil to suit your preference.

coolfire z80 f0 mode

Image courtesy of 3fvape.com

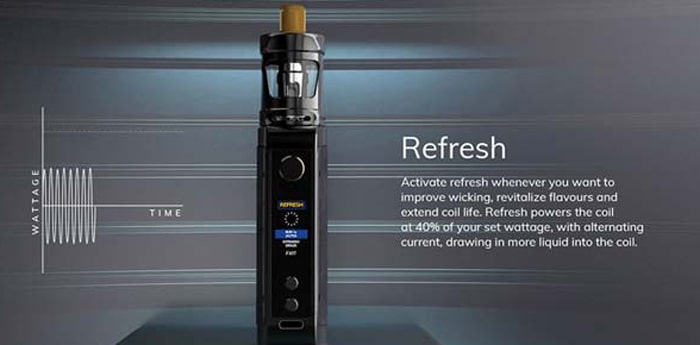

Also you get the coil refresh mode (again carried over from the Sensis) which when you have taken a vape will send 40% of the power to the coil for a split second when you release the fire button to prime the coil ready for your next vape.

coolfire z80 refresh

A colour TFT screen is provided but the size is not specified.

The top of the mod has a standard 510 connection so you can use this with a wide range of atomisers.

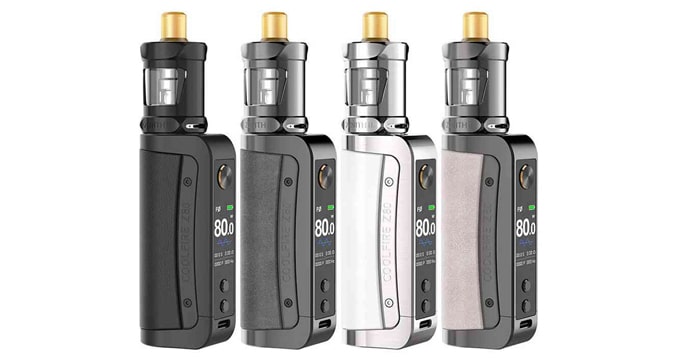

There are 4 colour options to choose from: Leather Black, Ash Grey, Leather White and Cloudy Grey.coolfire z80 range

Kit Includes

  • Innokin Coolfire Z80 Mod
  • Zenith 2 tank
  • 0.8ohm MTL coil (installed)
  • Z 0.3ohm RDL coil
  • Spare glass
  • Spare RDL drip tip
  • O-rings
  • Type C USB cable
  • User manual

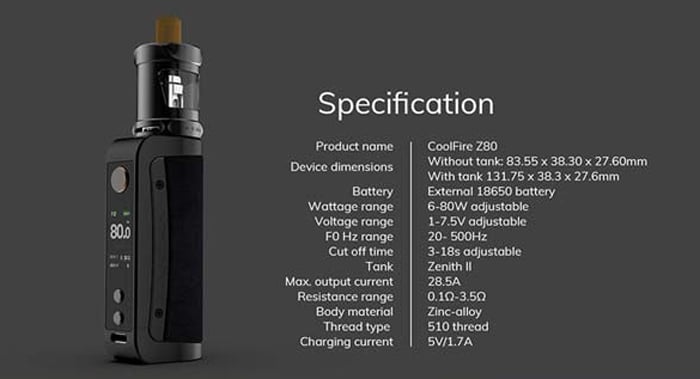

Innokin Coolfire Z80 Mod Specs

  • Size: 83.5×38.3×27.6mm
  • Output: 6-80W / 1-7.5V
  • User modes: Variable Wattage, Frequency – F0 (20-100Hz), Coil refresh
  • Battery: 1×18650 (not included)
  • Display: Colour screen – size not specified
  • Resistance range: 0.1-3.5ohm
  • USB Type C Charging – 1.7A charge rate
  • 510 connection

coolfire z80 specs

2 Likes

Looks like an interesting mod. Just a shame it is not a 21700 one, have gone away from 18650 mods for my every day rotation.

2 Likes

Thanks @Timwis excellent job

3 Likes

Will be writing a review soon!

2 Likes

Correction will be writing a review for the Sensis but that will cover the new tech!

3 Likes
